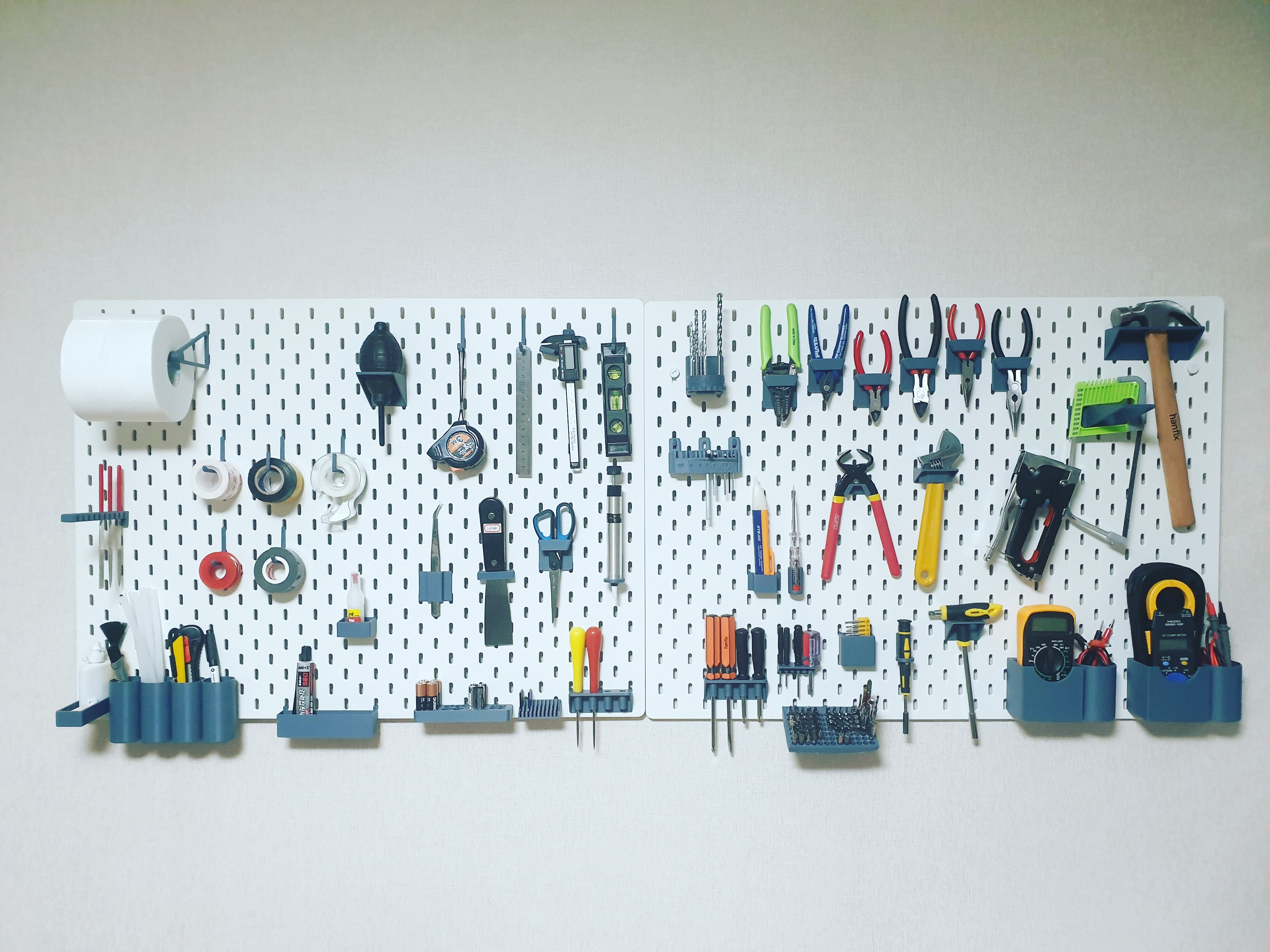

3D Printed ikea skadis pegboard accessories





* Reference Source

- https://www.thingiverse.com/thing:2849398



IKEA SKADIS Towelholder by CSD_Salzburg

IKEA SKADIS_Towelholder -> you will need a 275mm long pvc-pipe od=16mm / id=14mm. easy to print tight fit no wobbling no glueing IKEA SKADIS Collectionhttps://www.thingiverse.com/thing:2853261 IKEA SKADIS Container-/ Shelfsethttps://www.thingiverse.com/thi

www.thingiverse.com

- https://www.thingiverse.com/thing:2849369



IKEA SKADIS Hookset (tight fit -> without wobbling) by CSD_Salzburg

IKEA SKADIS Hookset (tight fit -> without wobbling) easy to print tight fit no wobbling no glueing IKEA SKADIS Collectionhttps://www.thingiverse.com/thing:2853261 IKEA SKADIS Container-/ Shelfsethttps://www.thingiverse.com/thing:2851040 IKEA SKADIS Univers

www.thingiverse.com

- https://www.thingiverse.com/thing:2853257



IKEA SKADIS Universal Hook Set by CSD_Salzburg

IKEA SKADIS Universal Hook Set easy to print tight fit no wobbling no glueing One Hook -> many Options! IKEA SKADIS Collectionhttps://www.thingiverse.com/thing:2853261 IKEA SKADIS Container-/ Shelfsethttps://www.thingiverse.com/thing:2851040 IKEA SKADIS Ho

www.thingiverse.com

- https://www.thingiverse.com/thing:2851040



IKEA SKADIS Container-/ Shelfset by CSD_Salzburg

IKEA SKADIS Container-/ Shelfset easy to print tight fit no wobbling no glueing IKEA SKADIS Collectionhttps://www.thingiverse.com/thing:2853261 IKEA SKADIS Hooksethttps://www.thingiverse.com/thing:2849369 IKEA SKADIS Universal Hook Sethttps://www.thingiver

www.thingiverse.com

- https://www.thingiverse.com/thing:2933140



Caco's ultimate IKEA SKÅDIS (Skadis) Peg Board Collection by Cacodaemon

After mounting my IKEA Skadis peg board, I was a little bit disappointed with the files on thingiverse I found for this type of peg board. So, I started designing my own collection of peg board parts. My design goals where that all files can be printed wit

www.thingiverse.com

- https://www.thingiverse.com/thing:4042873



Parametric Ikea Skadis Drill Bit Carousel by madc

Parametric Ikea Skadis Drill Bit Carousel This is a parametric Ikea Skadis Drill Bit Carousel designed in OpenSCAD, offering some parameters for customization. It is a remix of Ikea Skadis Dril Bit Carousel by 3Deddy. The carousel is designed to be fully c

www.thingiverse.com

- https://www.thingiverse.com/thing:4196820



IKEA_SKADIS_Pegboard_Caliper_Holder by SebDominguez

I just made a Caliper holder to fit my SKADIS IKEA pegboard. I wasn't really happy with the ones I've found on Thingivers, then I came across this really great collection of SKADIS accessories but unfortunately it didn't include a good caliper holder. So I

www.thingiverse.com

- https://www.thingiverse.com/thing:4115425



IKEA Skadis Peg board snap fit connector by ivanmailru

Hi, I needed to hang one IKEA Skadis under another and decided to design this snap-fit connector. Print without any support. In order to install it put two IKEA Scadis pegboards on the floor, take the longer connector part and put it underneath peg-boards.

www.thingiverse.com

- https://www.thingiverse.com/thing:2791919



SN-48B Crimping Plier holder for IKEA SKADIS pegboard by weidmane

SN-48B CRIMPING PLIER HOLDER FOR IKEA SKADIS PEGBOARD a simple design that works

www.thingiverse.com

- https://www.thingiverse.com/thing:2749146



Scissors holder for IKEA Skadis by 3dball

Holder for scissors or any other things which fit like pliers etc. Fits in IKEA Skadis.

www.thingiverse.com

- https://www.thingiverse.com/thing:2773037



Fluke Voltage Detector holder for IKEA Skadis by 3dball

Holder for Fluke Voltage Detector "VoltAlert", fits IKEA Skadis pegboard.

www.thingiverse.com

- https://www.thingiverse.com/thing:2347090



3D Printed Drill Bit Holder by MBcreates

https://www.youtube.com/watch?v=iirsGTFnTxM

www.thingiverse.com

- https://www.thingiverse.com/thing:2648038



Ikea Skadis (Pegboard) Box by marcluer

My first 3D design and my first Thingiverse upload. So be gentle ;) Inside dimensions: 124mm x 21mm Height: 30mm

www.thingiverse.com

- https://www.thingiverse.com/thing:3392612



Ikea Skadis Brymen multimeter container by egeltje

This is a container for the Ikea Skadis pegboard to hold the Brymen BM235 multimeter. Dave Jones from EEVblog sells a branded version to support his Youtube channel. I originally designed it so you could leave your leads connected, but that became a) unsta

www.thingiverse.com

- https://www.thingiverse.com/thing:3181792



SKADIS_10_Diamond-File_Holder by mar4711

This Holder is for 10 Diamond-File on a Ikea-Skadis-Pegboard. Diamond Filehttps://www.amazon.de/Silverline-633509-Diamant-Nadelfeilen-10-tlg/dp/B000LFTT1K/ref=sr_1_3?ie=UTF8&qid=1540739378&sr=8-3&keywords=diamond+file

www.thingiverse.com

- https://www.thingiverse.com/thing:4247453



IKEA Skadis Scraper Holder by Not_A_Penguin

Ikea Skadis Holder for scraper. Slightly loose fit.

www.thingiverse.com

- https://www.thingiverse.com/thing:2665067



IKEA Skadis - SD and microSD Card Holder by JayFi

--Update 12/09/2017-- Updated both models for wider tolerances. Cards should fit better now for everyone. Had them really tight just for my printer settings. --Update-- Updated with model including microSD slots. SD card holder for the IKEA Skadis. Have yo

www.thingiverse.com

- https://www.thingiverse.com/thing:3772318

'4) Parts&Others > 3D Printing' 카테고리의 다른 글

3D Printed ikea skadis pegboard accessories  (0) 2020.04.16
Posted by RD IoT RDIoT

댓글을 달아 주세요

DynamoDB Stream + Amazon ES (ElasticSearch, Kibana) [P024]




* Parts

- Raspberry Pi

- AWS Lambda Java Project in Ecplise


* Contents

1. Upload sensor data to json file using the Amazon S3 Rest API

Pi4J + Amazon S3 REST API + Amazon Athena [P019]



2. Amazon Lambda S3 Trigger (node.js) : S3toDynamoDB

- source code : https://github.com/rdiot/rdiot-p022/blob/master/S3toDynamoDB/index.js

'use strict';

console.log('RDIoT S3toDynamoDB Loading post function');

var AWS = require('aws-sdk');

var s3 = new AWS.S3();

var dynamo = new AWS.DynamoDB.DocumentClient();


exports.handler = function(event, context, callback) {

    console.log('Received event:', JSON.stringify(event, null, 2));

    var bucket = event.Records[0]['s3']['bucket']['name'];

    var en = event.Records[0]['eventName'];

    var et = event.Records[0]['eventTime'];

    var key = event.Records[0]['s3']['object']['key'];

    var sip = event.Records[0]['requestParameters']['sourceIPAddress'];


    var params1 = {Bucket: bucket, Key: key};

    s3.getObject( params1, function(err,data) {

        if(err) {

            console.log(err.stack);

            callback(err);

        } else {

            var value = data.Body.toString('ascii')

            console.log(data);

            console.log("Raw text:\n" + value);


            var params2 = {

                TableName: "pi-sensor",

                Item:{

                    "id": et,

                    "event" : en,

                    "bucket": bucket,

                    "key" : key,

                    "sip": sip,

                    "value" : value

                }

            };

            console.log("Gettings IoT device details...");


            //S3 to DynamoDB

            dynamo.put(params2, function(err, data) {

                if(err) {

                    console.error("Unable to post devices. Error JSON:", JSON.stringify(err, null, 2));

                    context.fail();

                } else {

                    console.log("keepet data:", JSON.stringify(data, null, 2));

                    context.succeed('success post');

                }


            });

        }

    });

}


3. AWS DynamoDB Monitoring




4. Create IAM Role

- It must have basic Amazon ES, DynamoDB, and Lambda execution permissions

- create custom role name : LambdaDynamoDBtoES


{

  "Version": "2012-10-17",

  "Statement": [

    {

      "Effect": "Allow",

      "Action": [

        "es:ESHttpPost",

        "es:ESHttpPut",

        "dynamodb:DescribeStream",

        "dynamodb:GetRecords",

        "dynamodb:GetShardIterator",

        "dynamodb:ListStreams",

        "logs:CreateLogGroup",

        "logs:CreateLogStream",

        "logs:PutLogEvents"

      ],

      "Resource": "*"

    }

  ]

}


5. Setup Amazon ES (Elasticsearch + Kibana)

- Define domain

- Configure cluster

- Set up access

- Review

- Service dashboard

6. Amazon Lambda DynamoDB Stream Trigger (java) : DynamoDBtoES




7. Develop AWS Lambda Java Project in Eclipse

- New Project : AWS Lambda Java Project


- New AWS Maven Project : awsLambdaDynamoDBStreamtoAmazonES

 : Class Name: LambdaFunctionHandler

 : Input Type : Dynamodb Event


- Check the items of DynamoDB when running pi4j


- Check the insert event message in the Cloud Watch Log

 : public Integer handleRequest(DynamodbEvent event, Context context) {

   context.getLogger().log("Received event: " + event);

{ApproximateCreationDateTime: Mon Aug 13 12:07:00 UTC 2018,Keys: {id={S: 2018-08-13T12:07:12.024Z,}},NewImage: {bucket={S: rdiot-test,}, id={S: 2018-08-13T12:07:12.024Z,}, sip={S: 211.245.211.252,}, event={S: ObjectCreated:Put,}, value={S: {"name":"temperature","value":33.0},}, key={S: pi_dht11_2018813079.json,}},SequenceNumber: 187352800000000003101012958,SizeBytes: 175,StreamViewType: NEW_AND_OLD_IMAGES}



- Key Code
for (DynamodbStreamRecord record : event.getRecords()) {
            context.getLogger().log(record.getEventID());
            context.getLogger().log(record.getEventName());
            context.getLogger().log(record.getDynamodb().toString());
            switch (record.getEventName()) {
            case "INSERT":
            case "MODIFY":
            // insert, update code area forAmazon  Elastic Search
            break;
            case "REMOVE":
            // none
            break;

            }
    }

- Reference
https://docs.aws.amazon.com/ko_kr/amazondynamodb/latest/developerguide/Streams.Lambda.html
https://docs.aws.amazon.com/AWSJavaScriptSDK/latest/AWS/ES.html
https://github.com/elastic/elasticsearch-js

https://docs.amazonaws.cn/en_us/elasticsearch-service/latest/developerguide/es-aws-integrations.html#es-aws-integrations-dynamodb-es

https://docs.aws.amazon.com/ko_kr/elasticsearch-service/latest/developerguide/aes-dg.pdf

Posted by RD IoT RDIoT

댓글을 달아 주세요

Bluetooth Audio Receiver Board [B210]



https://www.youtube.com/watch?v=k3NmiGb3d9E



* Specs

Audio input mode:Bluetooth receiver

USB decode and play

TF card decoding playback

Support Playback Format: MP3,WMA,WAV,FLAC

Power Supply: DC 5V (original phone charger can power small USB plug)

Board Size:50 x 40mm


Preamp output can be directly promote the headset and also can be followed

by the use of the power amp



* Contents

- Connect


- Sample




Posted by RD IoT RDIoT

댓글을 달아 주세요

Infrared distance sensor (GP2Y0A21YK0F) [S036]



https://www.youtube.com/watch?v=GhNwmtpVTY4


*GitHubhttps://github.com/rdiot/rdiot-s036.git


* Specs

operating voltage: 4.5 V to 5.5 V

average current consumption: 30 mA (typical)

distance measuring range: 10 cm to 80 cm (4" to 32")

output type: analog voltage

output voltage differential over distance range: 1.9 V (typical)

response time: 38 ± 10 ms

package size: 29.5×13.0×13.5 mm (1.16×0.5×0.53")

weight: 3.5 g (0.12 oz)


* Contents

- DataSheet : http://www.sparkfun.com/datasheets/Components/GP2Y0A21YK.pdf


- Connect

Yellow ----- A0

Black ----- GND

Red ----- 5V


- Key Code

int pin = A0;


int I = analogRead(pin);

int value = (6762 /(I-9)) -(4);


lcd.print("distance=" + (String)value + "CM  ");

'2) Sensor > Distance' 카테고리의 다른 글

Infrared distance sensor (GP2Y0A21YK0F) [S036]  (0) 2019.02.23
Ultrasonic Ranging Module (HC-SR04) [S011]  (0) 2016.09.08
Posted by RD IoT RDIoT

댓글을 달아 주세요

Serial MP3 Music Player Module for Arduino (YX5300) [B208]





https://www.youtube.com/watch?v=D9rsBf1b3CM


GitHub : https://github.com/rdiot/rdiot-b208


* Specs

The module is a kind of simple MP3 player device which is based on a high-quality MP3 audio chip---YX5300. It can support 8k Hz ~ 48k Hz sampling frequency MP3 and WAV file formats.

There is a TF card socket on board, so you can plug the micro SD card that stores audio files. MCU can control the MP3 playback state by sending commands to the module via UART port, such as

switch songs, change the volume and play mode and so on. You can also debug the module via USB

to UART module. It is compatible with Arduino / AVR / ARM / PIC.


Features:

1. Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48

2. High quality


3. Support file format: MP3 / WAV

4. Support Micro SD card, Micro SDHC Card

5. 30 class adjustable volume

6. UART TTL serial control playback mode, baud rate is 9600bps

7. Power supply can be 3.2 ~ 5.2VDC

8. Control logic interface can be 3.3V / 5V TTL

9. Compatible with Arduino UNO / Leonardo / Mega2560 / DUE



* Contents

- interface


- Connect

Serial MP3 Player - Arduino

GND - GND

VCC - 5V

TX - D5

RX - D6


- Commonly Command bytes Descriptions


- tested source code

 : https://github.com/rdiot/rdiot-b208/blob/master/SerialMp3PlayerControl.ino.ino


- Key Code

#include <SoftwareSerial.h>


#define ARDUINO_RX 5 // TX - Arduino RX

#define ARDUINO_TX 6 // RX - Arduino TX


SoftwareSerial mySerial(ARDUINO_RX, ARDUINO_TX);


unsigned char playmode = 1;

  #define PLAY  1

  #define PAUSE 0

static int8_t Send_buf[8] = {0} ;



/************Command byte**************************/

#define CMD_NEXT_SONG 0X01

#define CMD_PREV_SONG 0X02

#define CMD_PLAY_W_INDEX 0X03

#define CMD_VOLUME_UP 0X04

#define CMD_VOLUME_DOWN 0X05

#define CMD_SET_VOLUME 0X06

#define CMD_SINGLE_CYCLE_PLAY 0X08

#define CMD_SEL_DEV 0X09

#define DEV_TF 0X02

#define CMD_SLEEP_MODE 0X0A

#define CMD_WAKE_UP 0X0B

#define CMD_RESET 0X0C

#define CMD_PLAY 0X0D

#define CMD_PAUSE 0X0E

#define CMD_PLAY_FOLDER_FILE 0X0F

#define CMD_STOP_PLAY 0X16

#define CMD_FOLDER_CYCLE 0X17

#define CMD_SET_SINGLE_CYCLE 0X19

#define SINGLE_CYCLE_ON 0X00

#define SINGLE_CYCLE_OFF 0X01

#define CMD_SET_DAC 0X1A

#define DAC_ON  0X00

#define DAC_OFF 0X01

#define CMD_PLAY_W_VOL 0X22

/*********************************************************************/


#define ROTARY_ANGLE_SENSOR A0


#define ADC_REF 5//reference voltage of ADC is 5v

#define VCC     5    //the default value of VCC of the control interface is 5v

#define FULL_ANGLE 280//full value of the rotary angle is 280 degrees


void setup()

{

  //pinMode(2, INPUT); // Button - Paluse&Play

  Serial.begin(9600);

  mySerial.begin(9600);

  delay(500);

  attachInterrupt(0, playOrPause, RISING);//pin2 -> INT0, and the Touch Sensor

                                          //is connected with pin2 of Arduino

  sendCommand(CMD_SEL_DEV, DEV_TF);

  delay(200);

  sendCommand(CMD_PLAY_W_VOL, 0X0F01);

}

static int8_t pre_vol = 0x0f;

void loop()

{

  int degrees;

  degrees = getDegree();



  int8_t volume;

  /*The degrees is 0~280, should be converted to be 0~255 to control the*/

  /*brightness of LED */

  volume = map(degrees, 0, 280, 30, 0);

  if(volume != pre_vol)

  {

    sendCommand(CMD_SET_VOLUME, volume);

    pre_vol = volume;

  }

  delay(100);

}


void sendCommand(int8_t command, int16_t dat)

{

  delay(20);



  Send_buf[0] = 0x7e; //

  Send_buf[1] = 0xff; //

  Send_buf[2] = 0x06; //

  Send_buf[3] = command; //

  Send_buf[4] = 0x00;//

  Send_buf[5] = (int8_t)(dat >> 8);//datah

  Send_buf[6] = (int8_t)(dat); //datal

  Send_buf[7] = 0xef; //

  for(uint8_t i=0; i<8; i++)//

  {

    mySerial.write(Send_buf[i]);

  }



}


int getDegree()

{

  int sensor_value = analogRead(ROTARY_ANGLE_SENSOR);

  float voltage;

  voltage = (float)sensor_value*ADC_REF/1023;

  float degrees = (voltage*FULL_ANGLE)/VCC;

  return degrees;

}

/*Interrupt service routine*/

void playOrPause()

{

  cli();

  if(playmode == PLAY)

  {

    playmode = PAUSE;

  sendCommand(CMD_PAUSE,0);

  }

  else

  {

    playmode = PLAY;

  sendCommand(CMD_PLAY,0);

  }

  sei();

}


- Reference

CATALEX Serial MP3 Player manual version v1.0.1

 : https://github.com/rdiot/rdiot-b208/blob/master/Serial%20MP3%20Player%20v1.0%20Manual.pdf

Serial Debug tool - SSCOM32

 : https://github.com/rdiot/rdiot-b208/blob/master/Serial%20Debug%20tool%20-%20SSCOM32.zip

Serial MP3 Player Demo Code

 : https://github.com/rdiot/rdiot-b208/blob/master/SerialMP3PlayerDemoCode%20for%20Arduino-1.0.zip


Posted by RD IoT RDIoT

댓글을 달아 주세요

LW-101 LED Display Water Temperature Meter Monitor [B209]





https://www.youtube.com/watch?v=1FiPwYkkRFg



* Specs

Features:

No batteries required - The device harvests its energy from the water flow Quick and easy installation without any tools - fits with handheld showerhead Materials approved for drinking water

Newest innovated technology to upgrade and modernize your bath room;

self powered battery free thermometer to monitor your shower temperature.

As home essential Needed - to serve and surprise your husband, wife or kids.

(Especially for families having toddlers or babies)

High-precision temperature sensor 360°rotatable waterproof led screen for better viewing.


Specification:

Material : ABS, PC

Size : connect to standard 1/2inch hose or shower head;

Temperate Range : 32-212 ℉, 0-100℃

Weight : 80g



* Contents

- Connect






Posted by RD IoT RDIoT

댓글을 달아 주세요

S3 Lambda Trigger + Amazon SQS + SQSReceiver + SparkStreaming [P023]




https://www.youtube.com/watch?v=37gl-tkUa3M


GitHub : https://github.com/rdiot/rdiot-p023



* Parts

Pi4J + Amazon S3 REST API + Amazon Athena [P019]

Raspberry Pi2

Temperature and humidity DHT11 sensor module (KY-015) [S008]


* Contents

1. Create custom role : AWS Lambda required acess to your resources

- Create a new IAM Role

- Role Name : LambdaSQSRole

- Attach policy : AmazonSQSFullAccess

2. S3 Lambda Trigger : Create function

- Function Name : S3toSQS

- Runtime : Node.js 6.10


- Designer & Configure Triggers
 : Add triggers from the list on the left : S3
 : Bucket : s3 bucket name
 : Event type : PUT
 : Enable trigger



- S3toSQS Function Code
 : Source : https://github.com/rdiot/rdiot-p023/blob/master/S3toSQS/index.js


var AWS = require("aws-sdk");
var sqs = new AWS.SQS();
var QUEUE_URL = 'https://sqs.ap-northeast-2.amazonaws.com/996409770277/jobQueue';

exports.handler = (event, context, callback) => {

   var sqsParams = {
      MessageBody: JSON.stringify(event),
      QueueUrl: QUEUE_URL
    };
    console.log(sqsParams)

    var sqsdata = sqs.sendMessage(sqsParams, function(err, data) {
      if (err) {
        console.log('ERR', err);
      }
      console.log(data);
      context.succeed('Exit');

    });
    console.log('message sent')
};

3. Create New Queue (Amazon SQS)
- Queue Name : jobQueue


4. Run Pi4j Java



5. Load into Amazon SQS via Amazon Lambda

- full body

{"Records":[{"eventVersion":"2.0","eventSource":"aws:s3","awsRegion":"ap-northeast-2","eventTime":"2018-07-12T15:34:52.533Z","eventName":"ObjectCreated:Put","userIdentity":{"principalId":"AWS:AIDAIQKJB3IKQS4YDOI2Y"},"requestParameters":{"sourceIPAddress":"211.245.211.252"},"responseElements":{"x-amz-request-id":"1ED3B3657F2A08F6","x-amz-id-2":"MzvKf2QuE9OImRCUfc7dwc4YXAgCTQDfhs06Jbd6FQCsZ499R/lhip4j9uSBGebAVwh3Ev7f8RM="},"s3":{"s3SchemaVersion":"1.0","configurationId":"1cbdc078-b185-4621-81de-91c92188a0fa","bucket":{"name":"rdiot-test","ownerIdentity":{"principalId":"A3PLNTCS5VC05F"},"arn":"arn:aws:s3:::rdiot-test"},"object":{"key":"pi_dht11_20187132475.json","size":35,"eTag":"8ff2b7914053e1c8ef3c01323ee35b46","sequencer":"005B47751C774BCE79"}}}]}

6. Spark Streaming with Amazon SQS : Spark-SQS-Receiver (streaming custom receiver)

- SQS Receiver : https://github.com/rdiot/rdiot-p023/blob/master/sparkReceiver/src/main/java/com/rdiot/sparkReceiver/receiver/SQSReceiver.java

- SQS Receiver with Delete : https://github.com/rdiot/rdiot-p023/blob/master/sparkReceiver/src/main/java/com/rdiot/sparkReceiver/SQSWithDelete.java

- SQS Receiver without Delete : https://github.com/rdiot/rdiot-p023/blob/master/sparkReceiver/src/main/java/com/rdiot/sparkReceiver/SQSWithoutDelete.java


- s3 event word count source : https://github.com/rdiot/rdiot-p023/blob/master/sparkReceiver/src/main/java/com/rdiot/sparkReceiver/sample/SQSWordCount.java


package com.rdiot.sparkReceiver.sample;


import java.util.Arrays;


import org.apache.log4j.Level;

import org.apache.log4j.Logger;

import org.apache.spark.SparkConf;

import org.apache.spark.streaming.Duration;

import org.apache.spark.streaming.Durations;

import org.apache.spark.streaming.api.java.JavaDStream;

import org.apache.spark.streaming.api.java.JavaPairDStream;

import org.apache.spark.streaming.api.java.JavaReceiverInputDStream;

import org.apache.spark.streaming.api.java.JavaStreamingContext;


import com.amazonaws.regions.Regions;

import com.rdiot.sparkReceiver.SQSWithoutDelete;

import com.rdiot.sparkReceiver.receiver.SQSReceiver;


import scala.Tuple2;


public class SQSWordCount {

  private static Logger logger = Logger.getLogger(SQSWithoutDelete.class);

    final static String appName = "sparkSQSReceiver";

    final static String master = "local[2]";

    final static String queueName = "jobQueue";



    final static Duration batchDuration = Durations.seconds(5); // Batch Duration

    final static Duration windowDuration = Durations.seconds(5); // TBD

    final static Duration slideDuration = Durations.seconds(3); // TBD


public static void main(String[] args) throws InterruptedException {

    Logger.getLogger("org").setLevel(Level.OFF);

    //Spark Config

        SparkConf conf = new SparkConf().setMaster(master).setAppName(appName);

        conf.set("spark.testing.memory", "2147480000");  // if you face any memory issues


try (JavaStreamingContext jssc = new JavaStreamingContext(conf, batchDuration)) {

SQSReceiver javaSQSReceiver = new SQSReceiver(queueName) // 메시지큐 즉시 삭제

.with(Regions.AP_NORTHEAST_2);

        System.out.println("# Spark Streaming Start");



JavaReceiverInputDStream<String> input = jssc.receiverStream(javaSQSReceiver);

// SQS Messages

/*

        input.foreachRDD(rdd->{

            rdd.foreach(w->{

            System.out.println(w);

            });

        });

        */

        // Word Count

        JavaDStream<String> words = input.flatMap(x -> Arrays.asList(x.split(" ")).iterator());

        JavaPairDStream<String, Integer> pairs = words.mapToPair(s -> new Tuple2<>(s, 1));

        JavaPairDStream<String, Integer> wordCounts = pairs.reduceByKey((i1, i2) -> i1 + i2);

        wordCounts.print();


jssc.start();

jssc.awaitTermination();

} finally {

logger.info("Exiting the Application");

}

}


}


7. Result

- SQS Message

- Word Count : split ':'


* Reference

- AWS Lambda Permissions Model : https://docs.aws.amazon.com/lambda/latest/dg/intro-permission-model.html

- AWS SQS JS : https://docs.aws.amazon.com/AWSJavaScriptSDK/latest/AWS/SQS.html

- Spark Streaming Custom Receiver : http://spark.apache.org/docs/latest/streaming-custom-receivers.html

Posted by RD IoT RDIoT

댓글을 달아 주세요

TDA7492P Bluetooth 4.0 Amplifier Board 8-25V 50W (TDA7492P) [D091]


https://www.youtube.com/watch?v=bO7p7wcF7wA


* Specs

- Description

TDA7492P digital amplifier chip, designed to optimize the circuit layout, the sound quality is very good, with big power.

DIP switches can be more easily direcly adjusted after-class amplifier gain, to better promote the impedance larger speakers.


- Specs

Net weight: approx. 33g

Product size: approx.80*50*15mm/3.14*1.96*0.59''

Power: 2.1 interface DC 8~25V power supply

Audio input: stereo input various versions of the Bluetooth connection, using CSP8635 Bluetooth chip, Bluetooth V4.0, high software compatibility.

Output Impedance: 8 ohms Best(4,6,8,16 ohm impedance can drive speakers)

Output power: Add pre-5532 output foot(powered 25V, 6-ohm impedance output 2 X 50W, 8ohm impedance output 2 X 40W dual-channel)



Posted by RD IoT RDIoT

댓글을 달아 주세요

Pi4J + Amazon S3 REST API + S3 Lambda Trigger + DynamoDB [P022]





https://www.youtube.com/watch?v=LHZBQmybbqc


GitHub : https://github.com/rdiot/rdiot-p022


* Parts

- Pi4J + Amazon S3 REST API + Amazon Athena [P019]

Raspberry Pi2

- Temperature and humidity DHT11 sensor module (KY-015) [S008]


* Contents

1. S3 Upload

- Reference : Pi4J + Amazon S3 REST API + Amazon Athena [P019]


2. Run Java Application (pi4j)

- Source :

java -Dpi4j.linking=dynamic -jar pi4j_s3rest-0.0.1-SNAPSHOT.jar




3.  S3 Storage Monitoring



4. AWS Lambda Monitoring



5. AWS DynamoDB Monitoring


6. AWS Lambda Source (node.js) : S3toDynamoDB

- source code : https://github.com/rdiot/rdiot-p022/blob/master/S3toDynamoDB/index.js

'use strict';

console.log('RDIoT S3toDynamoDB Loading post function');

var AWS = require('aws-sdk');

var s3 = new AWS.S3();

var dynamo = new AWS.DynamoDB.DocumentClient();


exports.handler = function(event, context, callback) {

    console.log('Received event:', JSON.stringify(event, null, 2));

    var bucket = event.Records[0]['s3']['bucket']['name'];

    var en = event.Records[0]['eventName'];

    var et = event.Records[0]['eventTime'];

    var key = event.Records[0]['s3']['object']['key'];

    var sip = event.Records[0]['requestParameters']['sourceIPAddress'];


    var params1 = {Bucket: bucket, Key: key};

    s3.getObject( params1, function(err,data) {

        if(err) {

            console.log(err.stack);

            callback(err);

        } else {

            var value = data.Body.toString('ascii')

            console.log(data);

            console.log("Raw text:\n" + value);


            var params2 = {

                TableName: "pi-sensor",

                Item:{

                    "id": et,

                    "event" : en,

                    "bucket": bucket,

                    "key" : key,

                    "sip": sip,

                    "value" : value

                }

            };

            console.log("Gettings IoT device details...");


            //S3 to DynamoDB

            dynamo.put(params2, function(err, data) {

                if(err) {

                    console.error("Unable to post devices. Error JSON:", JSON.stringify(err, null, 2));

                    context.fail();

                } else {

                    console.log("keepet data:", JSON.stringify(data, null, 2));

                    context.succeed('success post');

                }


            });

        }

    });

}



7. Lambda : s3 put event sample

{
    "Records": [
      {
        "awsRegion": "ap-northeast-2",
        "eventName": "ObjectCreated:Put",
        "eventSource": "aws:s3",
        "eventTime": "2018-06-30T12:04:47.253Z",
        "eventVersion": "2.0",
        "requestParameters": {
          "sourceIPAddress": "211.245.211.252"
        },
        "responseElements": {
          "x-amz-id-2": "PTHGAl4fTlMHW/2lurF0HaruzgLtTnG1JyUlWC9o9AM21jLLUQ5Dp3LH1Ur0uVltB6L7BqDs6Ts=",
          "x-amz-request-id": "31CCB31CF0807321"
        },
        "s3": {
          "bucket": {
            "arn": "arn:aws:s3:::rdiot-test",
            "name": "rdiot-test",
            "ownerIdentity": {
              "principalId": "A3PLNTCS5VC05F"
            }
          },
          "configurationId": "174810a9-e50b-484e-bfda-eafed1ff2ec3",
          "object": {
            "eTag": "5d81121100d6ec386ee75237c8eb3549",
            "key": "pi_dht11_20186300444.json",
            "sequencer": "005B3771DF3531F6C1",
            "size": 35
          },
          "s3SchemaVersion": "1.0"
        },
        "userIdentity": {
          "principalId": "AWS:AIDAIQKJB3IKQS4YDOI2Y"
        }
      }
    ]
  }


8. Lambda : Context Sample

{
    "awsRequestId": "45bca188-7c5e-11e8-9d80-cdcb57e017f4",
    "callbackWaitsForEmptyEventLoop": true,
    "functionName": "S3toDynamoDB",
    "functionVersion": "$LATEST",
    "invokedFunctionArn": "arn:aws:lambda:ap-northeast-2:996409770277:function:S3toDynamoDB",
    "invokeid": "45bca188-7c5e-11e8-9d80-cdcb57e017f4",
    "logGroupName": "/aws/lambda/S3toDynamoDB",
    "logStreamName": "2018/06/30/[$LATEST]16b94689af7d4257bcc75dffc45798db",
    "memoryLimitInMB": "128"
  }


9. Lambda : S3 Object GET Data Sample

2018-06-30T14:04:12.852Z 775a8d39-7c6e-11e8-bc88-e9ab4a76e0af { AcceptRanges: 'bytes',
  LastModified: 2018-06-30T12:04:48.000Z,
  ContentLength: 35,
  ETag: '"5d81121100d6ec386ee75237c8eb3549"',
  CacheControl: 'no-cache',
  ContentType: 'binary/octet-stream',
  Metadata: {},
  StorageClass: 'REDUCED_REDUNDANCY',
  Body: <Buffer 7b 22 6e 61 6d 65 22 3a 22 74 65 6d 70 65 72 61 74 75 72 65 22 2c 22 76 61 6c 75 65 22 3a 33 30 2e 30 7d> }
2018-06-30T14:04:12.853Z 775a8d39-7c6e-11e8-bc88-e9ab4a76e0af Raw text:
{"name":"temperature","value":30.0}


Posted by RD IoT RDIoT

댓글을 달아 주세요

AWS IoT Core + Raspberry Pi + AWS IoT Device SDK for Java [P021]





https://www.youtube.com/watch?v=xhVIT6XJ01s


GitHub : https://github.com/rdiot/rdiot-p021


* Parts

- Raspberry Pi2

Temperature and humidity DHT11 sensor module (KY-015) [S008]


* Contents

1. Sample Test (basic publish)

- install maven3 in pi

- download maven3 : https://fossies.org/linux/misc/apache-maven-3.5.3-bin.tar.gz/

$ tar zxvf apache-maven-3.5.3-bin.tar.gz

$ export PATH=/home/pi/AWSIoT/apache-maven-3.5.3/bin:$PATH


- com.amazonaws.services.iot.client.sample.pubSub.PublishSubscribeSample

- download root ca certificate and install aws device sdk for java

- run pub/sub sample

$ unzip http://connect_device_package.zip

$ ./start.sh

mvn exec:java -pl aws-iot-device-sdk-java-samples -Dexec.mainClass="com.amazonaws.services.iot.client.sample.pubSub.PublishSubscribeSample" -Dexec.args="-clientEndpoint <prefix>.iot.<region>.amazonaws.com -clientId <unique client id> -certificateFile <certificate file> -privateKeyFile <private key file>"


[INFO] BUILD SUCCESS

[INFO] ------------------------------------------------------------------------

[INFO] Total time: 04:15 min

[INFO] Finished at: 2018-06-01T13:43:37Z

[INFO] ------------------------------------------------------------------------


Running pub/sub sample application...

[INFO] Scanning for projects...

[INFO] Inspecting build with total of 1 modules...

[INFO] Installing Nexus Staging features:

[INFO]   ... total of 1 executions of maven-deploy-plugin replaced with nexus-staging-maven-plugin

[INFO]

[INFO] -----------< com.amazonaws:aws-iot-device-sdk-java-samples >------------

[INFO] Building aws-iot-device-sdk-java-samples 1.1.1

[INFO] --------------------------------[ jar ]---------------------------------

[INFO]

[INFO] --- exec-maven-plugin:1.6.0:java (default-cli) @ aws-iot-device-sdk-java-samples ---

Cert file:../RaspberryPi.cert.pem Private key: ../RaspberryPi.private.key

Jun 01, 2018 1:43:59 PM com.amazonaws.services.iot.client.core.AwsIotConnection onConnectionSuccess

INFO: Connection successfully established

Jun 01, 2018 1:43:59 PM com.amazonaws.services.iot.client.core.AbstractAwsIotClient onConnectionSuccess

INFO: Client connection active: sdk-java

1527860639952: >>> hello from blocking publisher - 1

1527860639952: >>> hello from non-blocking publisher - 1

1527860639973: <<< hello from blocking publisher - 1

1527860639989: <<< hello from non-blocking publisher - 1

1527860640953: >>> hello from non-blocking publisher - 2

1527860640964: >>> hello from blocking publisher - 2

1527860640995: <<< hello from non-blocking publisher - 2

1527860641042: <<< hello from blocking publisher - 2

1527860641953: >>> hello from non-blocking publisher - 3

1527860641979: <<< hello from non-blocking publisher - 3


- Check the message in the AWS IoT Console



- check the subscription, topic name : sdk/test/java



2. Develop

- Requirements : +java1.7, aws-iot-device-sdk-java 1.1.1, Jackson 2.x, Paho MQTT client for Java 1.1.x, pi4j


- Install the SDK using Maven

 <dependency>

    <groupId>com.amazonaws</groupId>

    <artifactId>aws-iot-device-sdk-java</artifactId>

    <version>1.1.1</version>

</dependency>

<dependency>

    <groupId>com.amazonaws</groupId>

    <artifactId>aws-iot-device-sdk-java-samples</artifactId>

    <version>1.1.1</version>

</dependency>


- maven :  https://github.com/rdiot/rdiot-p021/blob/master/pom.xml

- source : https://github.com/rdiot/rdiot-p021/blob/master/src/main/java/com/rdiot/awsiot/App.java


3. Setup AWS IoT Core


4. Package Download


5. AWS IoT Rule Setup

- Rule Name : email_notification

- Description : when temperature is over 30 degrees.

- Rule Query : SELECT temperature as t, humidity as h FROM 'sensor/dht11' WHERE temperature > 30

- Actions
 1) SNS : sendEmail

 2) Republish : sensor/dht11/over30


6. run application

$ java -Dpi4j.linking=dynamic -jar awsiot-0.0.1-SNAPSHOT.jar (run.sh)



7. Monitoring




8. Action Check over 30 degrees

- republish to sensor/dht11/over30

- notification sns : email



- Reference

GitHub AWS IoT Device SDK for Java : https://github.com/aws/aws-iot-device-sdk-java/blob/master/README.md

API Document : http://aws-iot-device-sdk-java-docs.s3-website-us-east-1.amazonaws.com/

Sample Code : https://github.com/aws/aws-iot-device-sdk-java/blob/master/aws-iot-device-sdk-java-samples/src/main/java/com/amazonaws/services/iot/client/sample/pubSub/PublishSubscribeSample.java



Posted by RD IoT RDIoT

댓글을 달아 주세요

RGB LED Controller Dimmer 3 Channel DC12V - 24V 9A [B206]





https://www.youtube.com/watch?v=tsadcDA8O5M


* Specs

This LED Dimmer/RGB Controller can be used as a 3 channels LED single color strip light dimmer a LED RGB module / Flexible LED Strips as a static color controller.

Universal Red/Green/Blue(RGB) dimmer-konbs can be used to adjust Red, Green and Blue from 0 to 100 percent for full range color creation. Endless RGB color combinations.

Installation is quite easy, power up the unit with 12 to 24V DC power source and connect 3 output connection to RGB LED strip light or a Solid Color LED strip light. Electric wires and cables are easily connected to the unit through screw down connectors, which makes 100% secure connections.


Applications:

For RGB LED strip controlling and dimming each color independently.

For solid color LED strip with 3 independent channels

For dynamic White LED strip, controlling color temprature

For RGB modules


Input voltage: DC12V-24V, 108W (12V )/ 316W (24V)

Output: 3 channel

Max load current: 3 Amps/channel (9 Amps total)

IP rating: IP-55

Size:5.12*2.62*2 inches



* Contents

- LEFT Connect

+ - 12V

- - GND


- RIGHT Connect

COM - +

R - R

G - G

B - B


Posted by RD IoT RDIoT

댓글을 달아 주세요

Samsung SmartThings Home Monitoring Kit [P020]







https://www.youtube.com/watch?v=d8WQEuLjbC0



* Parts

Samsung SmartThings Hub (STH-ETH-250) [B195]

Samsung SmartThings Multipurpose Sensor (F-MLT-US-2) [S254]

Samsung SmartThings Motion Sensor (F-IRM-US-2) [S255]

Samsung SmartThings Dimming Outlet (F-CEN-DIM-1) [S256]



* Contents

1. SmartThings Classic Mobile App > Automation > Add a SmartApp


2. Configure Smart Lighting Automations




3. Automation Routines : "Door Open"






Posted by RD IoT RDIoT

댓글을 달아 주세요

Samsung SmartThings Dimming Outlet (F-CEN-DIM-1) [S256]






https://www.youtube.com/watch?v=gzb1YHhziaM



* Specs

- Description

Dim your lights to fit your mood.

Control standard plug-in lamps and other plug-in lighting devices.

Requires a SmartThings Hub or a compatible device with SmartThings Hub functionality.

Control your SmartThings Outlet and other connected devices with the SmartThings app for iPhone or Android.

Automate your SmartThings Outlet and set it to turn on or off when doors are opened, when there’s activity in your home, and much more.

Manage your SmartThings Outlet and other connected devices with SmartThings Routines for Good Morning, Goodbye, Good Night, and more.

Control your SmartThings Outlet with voice commands using SmartThings and the Google Assistant or Amazon Alexa.


- Specs

Model number: F-CEN-DIM-1

Power source: Wall-Powered

Weight: 0.25 lb

Dimensions: 2" x 2" x 2.5"

Protocol: ZigBee


* Contents

1. Reset the Outlet Sensor and then Add a Thing


2. Added the Outlet Sensor


3. Select the Outlet Sensor


4. Setup Automation > SmartApps


5.Add a SmartApps > SmartThings Recommends



6. SmartThings Recommends > Smart Lights


7. Select : Which devices do you want to control?


8. Setting : When Mode Changes to Night, Turn On the Outlet Sensor.


9. Good Night Routine : Mode Change to Night

   Goodbye! Routine : Mode Change to Away



- Reference

https://shop.smartthings.com/products/samsung-smartthings-dimming-outlet/631

https://www.samsung.com/us/smart-home/smartthings/

https://www.samsung.com/us/smart-home/smartthings/kits/

Posted by RD IoT RDIoT

댓글을 달아 주세요

Samsung SmartThings Motion Sensor (F-IRM-US-2) [S255]




https://www.youtube.com/watch?v=v-EWr0Zb34M



* Specs

- Description

Add a little smartness to your things

Monitor motion and temperature.

Requires a SmartThings Hub or a compatible device with SmartThings Hub functionality.

Monitor your Motion Sensor and other connected devices with the SmartThings app for iPhone or Android.

Receive alerts from SmartThings if your Motion Sensor detects movement, or if the temperature changes.

Automate connected devices with SmartThings and set them to turn on or off if your Motion Sensor detects movement, or if the temperature changes.


- Specs

Model number: F-IRM-US-2


Power source: Battery : CR2450

Color: White

Weight: 0.08 lb

Dimensions: 0.8" x 2" x 2"

Protocol: ZigBee

Battery type: CR-2477


* Contents

- Connect

1. Add Thing : Motion Sensor


2. added Motion Sensor


3. when click the motion sensor : status


4. Add Automation Routine


5. Add a Routine : name is "who"


6. Setting : Change the mode to "home"


7. Automatically perform "who" : select "Things start happening"


8. Perform : Which : Motion Sensor


9. Successfully added Things Start Happening



10. Notification




- Reference

https://shop.smartthings.com/products/samsung-smartthings-motion-sensor

https://www.samsung.com/us/smart-home/smartthings/

https://www.samsung.com/us/smart-home/smartthings/kits/




Posted by RD IoT RDIoT

댓글을 달아 주세요

Samsung SmartThings Multipurpose Sensor (F-MLT-US-2) [S254]




https://www.youtube.com/watch?v=v7Lrxuk4FL8



* Specs

- Description

Add a little smartness to your things.

Monitor doors and windows.

Monitor temperature and orientation.

Requires a SmartThings Hub or a compatible device with SmartThings Hub functionality.

Monitor your Multipurpose Sensor and other connected devices with the SmartThings app for iPhone or Android.

Receive alerts from SmartThings if your Multipurpose Sensor detects that doors and windows have been opened or left open, or if the temperature changes.

Automate connected devices with SmartThings and set them to turn on or off if your Multipurpose Sensor detects that doors and windows have been opened or left open, or if the temperature changes.


- Specs

Model number: F-MLT-US-2

Power source: Battery

Color: White

Weight: 0.1 lb

Dimensions: 0.57" x 1.35" x 1.9"

Protocol: ZigBee

Battery type: CR-2450 battery



* Contents

1. Add a Things : Multipurpose Sensor

- If your device doesn't connect, Then press the Connect Button.


2. Devices found and then Save : Multipurpose Sensor


3. You can see the Multipurpose Sensor Thing


4. Add a Routine to get push notification when open and close

- write the routine name : Door Open


- Change the mode : home


- Additional settings : Automatically perform "Door Open"

 : Select "Something Opens or Closes"


- Advanced Options : Don't automatically do this if I am in one of these modes : none

- On the push notification


added "Door Open" Routine


5. When the multipurpose sensor is open or close


- Reference

https://www.samsung.com/us/smart-home/smartthings/

https://www.samsung.com/us/smart-home/smartthings/kits/

https://shop.smartthings.com/products/samsung-smartthings-multipurpose-sensor




Posted by RD IoT RDIoT

댓글을 달아 주세요

Samsung SmartThings Hub (STH-ETH-250) [B195]





https://www.youtube.com/watch?v=ERabX0zL7ag


* Specs

- Description

The brain of your smart home.

Connect wirelessly with a wide range of smart devices and make them work together.

Monitor and control connected devices in your home using a single SmartThings app for iPhone or Android.

Receive alerts from connected devices when there’s unexpected activity in your home.

Automate connected devices in your home and set them to turn on or off when doors are opened, as people come and go, and much more.

Manage connected devices in your home with SmartThings Routines for Good Morning, Goodbye, Good Night, and more.

Control connected devices in your home with voice commands using SmartThings and Amazon Alexa or Google Home.

Requires an internet-connected Wi-Fi router with an available ethernet port, plus the free SmartThings app for Android (4.1 or later) or iPhone (iOS 9.0 or later).


- Specs

Model number: STH-ETH-250

Power source: Battery, Wall-Powered

Color: White

Weight: 7.68 oz

Dimensions: 4.2" x 4.9" x 1.3"

Protocol: ZigBee, Z-Wave, Cloud-to-Cloud, LAN

Battery type: 4 AA batteries


* Contents

1. Install SmartThings Hub

- It needs welcome code (6 digit)

- power : AA battery 4ea or AC


2. Connect to SmartThings Hub and SmartThings Classic Mobile App

- add new SmartThings User


- create Samsung Account


- After login, Confirm your country



- Enter Code for activate your SmartThings secure Code.


- Connect your Hub


- Setup your location


- Setting up your hub


- Setup success!


- Adjust Battery Settings


- Finished


- Status Check : Hub is Online in menu


- Reference

https://shop.smartthings.com/products/samsung-smartthings-hub


Posted by RD IoT RDIoT

댓글을 달아 주세요

Pi4J + Amazon S3 REST API + Amazon Athena [P019]






https://www.youtube.com/watch?v=G-Ot7oh4_jk


GitHub : https://github.com/rdiot/rdiot-p019.git


* Parts

- Raspberry Pi2

Temperature and humidity DHT11 sensor module (KY-015) [S008]



* Contents

- Connect

S - Signal GPIO3

middle - VCC

- - GND


1. Getting sensor value by Pi4J (Java I/O library for the Raspberry Pi) and then upload to amazon s3.

 : Run the java application

$ java -Dpi4j.linking=dynamic -jar pi4j_s3rest-0.0.1-SNAPSHOT.jar


2. Check the upload status in the amazon console. (s3)




3. Setup Amazon Athena .

- add database : pisensor

- add table : temperature


- DDL (add table)

CREATE EXTERNAL TABLE IF NOT EXISTS piSensor.temperature (

  `name` string,

  `value` float

)

ROW FORMAT SERDE 'org.openx.data.jsonserde.JsonSerDe'

WITH SERDEPROPERTIES (

  'serialization.format' = '1'

) LOCATION 's3://rdkim-test/'

TBLPROPERTIES ('has_encrypted_data'='false');


4. SQL Query in the Amazon Athena

example : SELECT * FROM "pisensor"."temperature" limit 10;



- Pi4J Java Maven

<dependency>

    <groupId>com.pi4j</groupId>

    <artifactId>pi4j-core</artifactId>

   <version>1.1</version>

</dependency>


- project maven pom.xml

 : https://github.com/rdiot/rdiot-p019/blob/master/pom.xml


- source : main : https://github.com/rdiot/rdiot-p019/blob/master/pi4j_s3rest/App.java

- source : pi4j : https://github.com/rdiot/rdiot-p019/blob/master/pi4j/dht11.java

- source : s3 rest api header aws sig4 : https://github.com/rdiot/rdiot-p019/blob/master/s3rest/auth/AWS4SignerForAuthorizationHeader.java


- Key Code

     dht11 dht = new dht11();



        for (int i=0; i<10; i++) {

            try {

Thread.sleep(2000);

} catch (InterruptedException e) {

e.printStackTrace();

}



            objectContent = dht.getTemperature();



            if(objectContent != null) {

        System.out.println(objectContent);

        putS3Object(bucketName, regionName, awsAccessKey, awsSecretKey);

            break;

            }

         }



- Reference

 : Pi4J Project : http://pi4j.com

 : Pi4J GitHub : https://github.com/Pi4J/pi4j

 : get dht11 : https://stackoverflow.com/questions/28486159/read-temperature-from-dht11-using-pi4j

 : Amazon S3 Rest API : https://docs.aws.amazon.com/AmazonS3/latest/API/Welcome.html


Posted by RD IoT RDIoT

댓글을 달아 주세요

Amazon Polly + Google Home + Sonoff wifi [P018]





https://www.youtube.com/watch?v=IX2mUb73he8


GitHub : https://github.com/rdiot/rdiot-p018.git


* Parts

Google Home AI Speaker [B187]

Sonoff ITEAD WiFi Switch Module (ESP8266) [S198]

Amazon Polly TTS [P017]


* Contents

- Install AWS CLI in Raspberry Pi

wget https://s3.amazonaws.com/aws-cli/awscli-bundle.zip

$ unzip awscli-bundle.zip

$ sudo ./install -i /usr/local/aws -b /usr/local/bin/aws


- Config AWS CLI

$ aws configure


- Java amazon polly development

 : maven : pom.xml : https://github.com/rdiot/rdiot-p018/blob/master/pom.xml

 : Source : https://github.com/rdiot/rdiot-p018/blob/master/PollyDemo.java

 : Binary :  polly_sonoff.tar.gz

 : command.txt : ON or OFF



- Sonoff Work with Google Home

- How to connect Sonoff smart ewelink to Google Assistant

1) Tap Home control in Googlt Home App Menu

2) Uner Devices, tap the + icon in the bootom right. (add devices)

3) Tap Smart We Link

4) Enter Your eWeLink account email/phone number. (need countrycode and account, password)

5) After Logging in successfully, it will display the device.




- Run java amazon polly application

$ java - jar polly-0.0.1-SNAPSHOT.jar



Posted by RD IoT RDIoT

댓글을 달아 주세요

Raspberry Pi Camera 5MP Night Version (SEN0184) [S280]






https://www.youtube.com/watch?v=HhDAtAHRuQ8


* Specs

Camera: 5 million pixels

Photosensitive Module: OV5647

Camera Parameters:

CCD size: 1/4 inches

Aperture (f): 1.8

Focal Length: 3.6MM (adjustable)

Diagonal: 75.7 degrees

Sensor best PIX: 1080p

4 Screw Holes

Can be used in a fixed position

3.3V external power supplies

Supports access to the infrared light or fill light

Dimension: 25mm x 24mm



* Contents

- Capture still image

$ raspistill -t 30000 -o rdiot.jpg


- Capture video

$ raspivid -t 10000 -o video.h264



- Capture Night Test



- Capture Day Test



- Download Capture File Sample :



- Reference

 : RASPICAM COMMANDS : https://www.raspberrypi.org/documentation/usage/camera/raspicam/README.md



Posted by RD IoT RDIoT

댓글을 달아 주세요

Amazon Polly TTS(Text to Speech) [P017]





https://www.youtube.com/watch?v=1ehU_bueWdQ


GitHub : https://github.com/rdiot/rdiot-p017.git


* Specs

Amazon Polly is a service that turns text into lifelike speech, allowing you to create applications that talk, and build entirely new categories of speech-enabled products. Amazon Polly is a Text-to-Speech service that uses advanced deep learning technologies to synthesize speech that sounds like a human voice.


With dozens of lifelike voices across a variety of languages, you can select the ideal voice and build speech-enabled applications that work in many different countries.


* Contents

- Install AWS CLI in Raspberry Pi

wget https://s3.amazonaws.com/aws-cli/awscli-bundle.zip

$ unzip awscli-bundle.zip

$ sudo ./install -i /usr/local/aws -b /usr/local/bin/aws


- config AWS CLI

$ aws configure


- java amazon polly library and text file


- run amazon polly application


- binary library download :  polly.tar.gz


- maven dependency

 : https://github.com/rdiot/rdiot-p017/blob/master/pom.xml

<dependency>

<groupId>com.amazonaws</groupId>

<artifactId>aws-java-sdk-polly</artifactId>

<version>1.11.77</version>

</dependency>

<!-- https://mvnrepository.com/artifact/com.googlecode.soundlibs/jlayer -->

<dependency>

<groupId>com.googlecode.soundlibs</groupId>

<artifactId>jlayer</artifactId>

<version>1.0.1-1</version>

</dependency>


- Souce Code

 : https://github.com/rdiot/rdiot-p017/blob/master/PollyDemo.java


package com.rdiot.polly;


import java.io.BufferedReader;

import java.io.FileInputStream;

import java.io.IOException;

import java.io.InputStream;

import java.io.InputStreamReader;


import com.amazonaws.ClientConfiguration;

import com.amazonaws.auth.DefaultAWSCredentialsProviderChain;

import com.amazonaws.regions.Region;

import com.amazonaws.regions.Regions;

import com.amazonaws.services.polly.AmazonPollyClient;

import com.amazonaws.services.polly.model.DescribeVoicesRequest;

import com.amazonaws.services.polly.model.DescribeVoicesResult;

import com.amazonaws.services.polly.model.OutputFormat;

import com.amazonaws.services.polly.model.SynthesizeSpeechRequest;

import com.amazonaws.services.polly.model.SynthesizeSpeechResult;

import com.amazonaws.services.polly.model.Voice;


import javazoom.jl.player.advanced.AdvancedPlayer;

import javazoom.jl.player.advanced.PlaybackEvent;

import javazoom.jl.player.advanced.PlaybackListener;


public class PollyDemo {


private final AmazonPollyClient polly;

private final Voice voice;

//private static final String SAMPLE = "Polly Test";

private static String SAMPLE;

public PollyDemo(Region region) {

// create an Amazon Polly client in a specific region

polly = new AmazonPollyClient(new DefaultAWSCredentialsProviderChain(),

new ClientConfiguration());

polly.setRegion(region);

// Create describe voices request.

DescribeVoicesRequest describeVoicesRequest = new DescribeVoicesRequest().withLanguageCode("en-US");

// Synchronously ask Amazon Polly to describe available TTS voices.

DescribeVoicesResult describeVoicesResult = polly.describeVoices(describeVoicesRequest);

voice = describeVoicesResult.getVoices().get(0);



}

public static String roadLocalFile(String filepath) {

    String readFile= "";

    try {

        BufferedReader in = new BufferedReader(new InputStreamReader(new FileInputStream(filepath),"UTF-8"));

        String s;

        while ((s = in.readLine()) != null) {

            readFile+= s;

        }

        in.close();

    } catch (IOException e) {

        System.err.println(e);

        System.exit(1);

    }



    return readFile;

}


public InputStream synthesize(String text, OutputFormat format) throws IOException {

SynthesizeSpeechRequest synthReq =

new SynthesizeSpeechRequest().withText(text).withVoiceId(voice.getId())

.withOutputFormat(format);

SynthesizeSpeechResult synthRes = polly.synthesizeSpeech(synthReq);


return synthRes.getAudioStream();

}


public static void main(String args[]) throws Exception {

SAMPLE = roadLocalFile("./text.txt");

//create the test class

PollyDemo helloWorld = new PollyDemo(Region.getRegion(Regions.AP_NORTHEAST_2));

//get the audio stream

InputStream speechStream = helloWorld.synthesize(SAMPLE, OutputFormat.Mp3);


//create an MP3 player

AdvancedPlayer player = new AdvancedPlayer(speechStream,

javazoom.jl.player.FactoryRegistry.systemRegistry().createAudioDevice());


player.setPlayBackListener(new PlaybackListener() {

@Override

public void playbackStarted(PlaybackEvent evt) {

System.out.println("#################################################################");

System.out.println("RD IoT Amazon Polly TTS");

System.out.println("#################################################################");

System.out.println("Playback started");

System.out.println("-----------------------------------------------------------------");

System.out.println("TTS : " + SAMPLE);

}

@Override

public void playbackFinished(PlaybackEvent evt) {

System.out.println("-----------------------------------------------------------------");

System.out.println("Playback finished");

System.out.println("#################################################################");

}

});

// play it!

player.play();

}


}




Posted by RD IoT RDIoT

댓글을 달아 주세요

USB Microphone [S281]





https://www.youtube.com/watch?v=ChITet6OuxM


* Specs

Product parameters:

The sensitivity: - 47 db + 4 db

Lower sensitivity: - 3 db at 1.5 V

Working voltage: 4.5 V

The frequency response: 100 to 16 KHZ

SNR: wining - 67 db

Line length: 0.7 to 0.9 M


* Contents

- Check Device

$ lsusb

$ dmesg


- Setup

$ sudo vi /usr/share/alsa/alsa.conf


defaults.ctl.card 0 => 1

defaults,pcm, card 0 => 1


- Setup Volume

$ alsamixer


- Recording

$ arecord -D plughw:1,0 -c 1 -f S16_LE -r 44100 test.wav


- Play

$ aplay test.wav


Posted by RD IoT RDIoT

댓글을 달아 주세요

USB 2.0 Microphone Speech MIC Audio Adapter Driver [S278]





https://www.youtube.com/watch?v=Zw0uAvTD8n0


* Specs

Brand Name: ANBES

Set Type: Single Microphone

Communication: Wireless

Transducer: Condenser Microphone

Use: Computer Microphone

Model Number: USB Microphone

Polar Patterns: Omnidirectional

Package: No

Style: Computer Microphone

Item Name: Computer Microphone


* Contents

- Check Device

$ lsusb

$ dmesg


- Setup

$ sudo vi /usr/share/alsa/alsa.conf


defaults.ctl.card 0 => 1

defaults,pcm, card 0 => 1


- Setup Volume

$ alsamixer


- Recording

$ arecord -D plughw:1,0 -c 1 -f S16_LE -r 44100 test.wav


- Play

$ aplay test.wav




Posted by RD IoT RDIoT

댓글을 달아 주세요

Xiaomi Yeelight Candle Light [D090]






https://www.youtube.com/watch?v=qxB2_IPN0Ws


* Specs

- Description

Candela is the world's only smart candlelight using the latest Bluetooth (BLE) Mesh technology, combining the warm comfort of candlelight with the convenience and control of smart technology. The BLE Mesh technology allows up to 30,000 units Candelas to communicate with each other.

Control your candela and other YEELIGHT smart lights with our Android or iOS apps

The built-in 2100Mah battery allows for up to 8 hours of continuous use on a single charge. The portability lets candela fits in any moment of your life

Visual comfort light, the candela holds an 1800K Color temperature, which is the same Color temperature as candlelight, with adjustable brightness, leading to the warm familiar Copper of candlelight

Distinctive Design, Candela’s final design was the sum effort of 4 months collaboration with multinational design teams

Top quality materials, we want to fully load the lamp, offering a timeless piece with minimalist design components while using top quality materials to bring you the luxury product experience


Multiple lights, countless displays

A warm candle light for a heart-warming feeling

Your remote to a beautiful candlelit night

Intricately designed, a touchable artwork

Built-in rechargeable battery for a long-lasting life


- Specs

Brand YEELIGHT

Model Candela, LED Candle light,

Item Weight 1.4 pounds

Product Dimensions 4 x 4 x 10 inches

Item model number YLFW01YL

UPC 608887786279

Batteries: 1 Lithium Metal batteries required. (included)

Color Gold

Style Modern

Material Aluminum

Shape Circular

Power Source battery-powered

Item Package Quantity 1

Batteries Included? Yes

Batteries Required? Yes

Battery Cell Type Lithium Metal

Cover Included Candela, USB Cable

Bulb Type LED

Voltage 5 volts

Wattage 5 watts


* Contents

- yeelight app : https://play.google.com/store/apps/details?id=com.yeelight.cherry


- yeelight cancle ble advertise before pairing







'3) Actuator > LED_Candle' 카테고리의 다른 글

Xiaomi Yeelight Candle Light [D090]  (0) 2018.03.25
Posted by RD IoT RDIoT

댓글을 달아 주세요

 Google Home AI Speaker [B187]






https://www.youtube.com/watch?v=swZtIL98IKY


* Specs

Dimensions

Diameter: 3.79 in (9B6.4 mm)

Height: 5.62 in (142.8 mm)

Power cable: 70.8 in (1.8 m)


Weight

Device: 1.05 lbs (477 g)

Power adapter: 4.58 oz (130 g)


Colors

Body: White


Base: Standard base is slate fabric.


Supported Audio Formats

HE-AAC, LC-AAC+, MP3, Vorbis, WAV (LPCM), FLAC with support for high-resolution streams


Wireless network

802.11b/g/n/ac (2.4GHz/5Ghz) Wi-Fi for high-performance streaming

Note: WPA2-Enterprise is not supported.


Speaker

High excursion speaker with 2" driver + dual 2" passive radiators delivers clear highs and rich bass

Far-field voice recognition supports hands-free use


Power

Required 16.5V, 2A included


Power Adapter

100-240V-1.1A 50-60Hz


Ports & Connectors

DC power jack

Micro-USB port (for service only)


Supported Operating Systems

Android 4.1 and higher

iOS 8.0 and higher


* Contents

https://madeby.google.com/home/

Home Improvement Home Automation Smart Home Kits and Hubs

Powered by your very own Google assistant, Google Home is designed to help streamline your life and manage your everyday tasks. On hectic mornings, get your daily schedule, traffic, and flight info, or set an alarm by saying, Ok Google, wake me up tomorrow at 6:30am. Simplify your shopping duties by telling Google to add things to your shopping list, or use it to set a timer to keep you on track. And there's more ? you can ask it questions, tell it to do things, and use it to stream entertainment to your TV with Chromecast. It's your own Google, always ready to help. Just start by saying, "Ok Google."

Google Home:

Enjoy your music

With a simple voice command, play tunes from services like YouTube Music and Google Play Music. Enjoy even more compatible audio services by streaming directly from your phone to Google Home.

Get answers from Google

Get answers to things you want to know including the latest on weather, traffic, finance, sports and more. Plus, get information to help you do things in your world. Ask "What is the nearest pharmacy" and follow it up with "When does it close"

Manage your everyday tasks

With your permission, Google Home can help you with things like your commute, flight information and more. Plus it's a whiz at setting alarms, starting timers and adding items to your shopping list.

Control compatible smart devices

Simply ask Google Home to stream videos to your TV with Chromecast or to turn up your Nest thermostat.

Get superior sound and voice technology

Google Home's high excursion speaker delivers HiFi sound quality. It can also hear you reliably thanks to far-field microphones.


- Control by TTS (Amazon Polly)

<speak>
OK Google <break time="2s" />
What is google home?
</speak>


- Reference

google home : https://madeby.google.com/home/

google home help : https://support.google.com/googlehome/topic/7196250?hl=en&ref_topic=7029677,7029097,7029808,



'7) IoT_AI > AI Speaker' 카테고리의 다른 글

Google Home AI Speaker [B187]  (0) 2018.03.22
SKT NUGU AI Speaker Ordering Pizza [B186.1]  (0) 2016.12.10
SKT NUGU AI Speaker [B186]  (0) 2016.11.28
Posted by RD IoT RDIoT

댓글을 달아 주세요

NRF24L01 2.4Ghz Wireless Module (NRF24L01) [S275]






https://www.youtube.com/watch?v=CVfX8fmW6Bk


GitHub : https://github.com/rdiot/rdiot-s275.git


* Specs

nRF24L01 is a single chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM band.

The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst? protocol engine.

Output power, frequency channels, and protocol setup are easily.

programmable through a SPI interface.

Current consumption is very low, only 9.0mA at an output power of -6dBm and 12.3mA in RX mode.

Built-in Power Down and Standby modes makes power saving easily realizable.

Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications.

125 Communications channels, Multi-point communication and frequency hopping to meet the communication needs.

Built-in hardware CRC error detection, Multipoint communication address control.

Low-power 1.9 ~ 3.6V, only 1uA on Power down mode.

Built-in 2.4Ghz antenna.

Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient.

Support 6 Data channels of data reception.

Standard DIP Pitch Interface for embedded applications.


* Contents

- Connect


VCC - 3.3V

CSN - D8

MOSI - D11

IRQ - NONE

GND - GND

CE - D7

SCK - D13

MISO - D12


- parts

Rotary Encoder Module (KY-040) [S120]


- Library : https://github.com/nRF24/RF24

- Tested Library Download :  RF24-master.zip



- Key Code

- RF24_TX : https://github.com/rdiot/rdiot-s275/blob/master/RF24_TX.ino

#include <Wire.h>

#include <LiquidCrystal_I2C.h>

#include <SPI.h>

#include <nRF24L01.h>

#include <RF24.h>


LiquidCrystal_I2C lcd(0x27,16,2);  // set the LCD address to 0x20 for a 16 chars and 2 line display


RF24 radio(7, 8); // SPI Bus CE, CSN

const byte address[6] = "00001"; // RX = TX same address

int pin = A0; // Rotary Encoder Module (KY-040) [S120] : http://rdiot.tistory.com/126 [RDIoT Demo]


void setup() {

  pinMode(pin, INPUT);



  Serial.begin(9600);



  radio.begin();

  radio.openWritingPipe(address);

  radio.setPALevel(RF24_PA_MIN); // Power Level : accoding to distance : RF24_PA_MIN / RF24_PA_LOW / RF24_PA_HIGH / RF24_PA_MAX


  radio.stopListening();  // TX


  lcd.init(); // initialize the lcd

  lcd.backlight();

  lcd.print("start LCD1602");

  delay(1000);

  lcd.clear();



}


void loop() {

  lcd.setCursor(0,0);

  lcd.print("S275:RF24L01 TX");



  int readVal = analogRead(pin);

  readVal = map(readVal, 0, 1023, 0, 179);

  Serial.println(readVal);


  lcd.setCursor(0, 1);

  lcd.print("msg=>" + String(readVal) + "  ");



  char buf[4];

  itoa(readVal, buf, 10);



  radio.write(&buf, sizeof(buf)); //send messages to RX

  delay(10);



}


- RX24_RX : https://github.com/rdiot/rdiot-s275/blob/master/RF24_RX.ino

#include <Wire.h>

#include <LiquidCrystal_I2C.h>

#include <SPI.h>

#include <nRF24L01.h>

#include <RF24.h>

#include <Servo.h>


LiquidCrystal_I2C lcd(0x27,16,2);  // set the LCD address to 0x20 for a 16 chars and 2 line display


RF24 radio(7, 8); // SPI Bus CE, CSN

const byte address[6] = "00001"; // TX = RX same address


Servo myservo;

int servoPin = 4;


void setup() {


  Serial.begin(9600);



  radio.begin();

  radio.openReadingPipe(0, address);

  radio.setPALevel(RF24_PA_MIN); // Power Level : accoding to distance : RF24_PA_MIN / RF24_PA_LOW / RF24_PA_HIGH / RF24_PA_MAX


  radio.startListening(); // RX


  myservo.attach(servoPin);


  lcd.init(); // initialize the lcd

  lcd.backlight();

  lcd.print("start LCD1602");

  delay(1000);

  lcd.clear();



}


void loop() {

  lcd.setCursor(0,0);

  lcd.print("S275:RF24L01 RX");


  lcd.setCursor(0, 1);

  if (radio.available()) {

    char text[4] = "";



    radio.read(&text, sizeof(text));

    Serial.println(text);



    lcd.print("rcv=>" + String(text) + "     ");


    int value = atoi(text);

     myservo.write(180-value);

  }


  delay(10);



}


- how to debug radio details

#include <printf.h>


  printf_begin();

  radio.printDetails();





Posted by RD IoT RDIoT

댓글을 달아 주세요

nRF905 Wireless Module 433,868,915Mhz (NRF905) [S117]








https://www.youtube.com/watch?v=IgzJsUzVhBk


GitHubhttps://github.com/rdiot/rdiot-s117.git


* Specs

Tri-band transceiver operating frequency for the international ISM band 433/868/915MHz GMSK modulation, anti-interference ability, especially for industrial control applications using the DSS + PLL frequency synthesizer technology, excellent frequency stability, high sensitivity, to achieve - 100dBm low operating voltage (2.7V), low power consumption, standby only 1uA maximum transmit power of +10 dBm with multiple channels (up to more than 170) meet the requirements for low-power devices, in particular, to meet the needs of multi-channel work of special occasions, the work rate up to 76.8 Kbps

External components of at least (10), the basic need to debug. Low transmit power and high receive sensitivity of the design, the use of the license required to apply for open use at distances up to 1000m and the specific use of the environment and component parameters.


Electrical Characteristics:

NRF905 work band: 433/868/915MHz

Channel number: 170

Function: transmitter / receiver

Frequency stabilization method: PLL

Modulation mode: the FSK / GMSK

Maximum output power: +10 dBm

Sensitivity:-100dBm

Maximum operating rate: 76.8Kbit / s

Working voltage :2.7 - 3 .3 V


Application areas:

Vehicle monitoring, remote control, telemetry, small wireless network, wireless meter reading, access control systems, residential paging, industrial data acquisition systems, wireless tags, identification, non-contact RF smart cards, small wireless data terminals, security, fire systems, wireless remote control system, bio-signal acquisition, hydrological and meteorological monitoring, robot control, wireless 232 data communications, wireless 485/422 data communications, digital audio, digital image transmission.


* Contents







- Connect

VCC ---- Power supply.
TXE ---- RF module mode selecting.
CE ---- Enable RF module for transmit and receive.
PWR ---- Power up chip.
CLK ---- Output clock, divided crystal oscillator full swing clock.
CD ---- Carrier detect.
AM ---- Address matched.
DR ---- Receive and transmit ready.
MISO ---- SPI master input slave output.
MOSI ---- SPI mater output slave input.
SCK ---- SPI clock.
CSN ---- SPI enable.
GND ---- Ground
GND ---- Ground



- KOR : 919.7Mhz, 921.7Mhz, 923.1Mhz


- Reference Source : http://www.electrodragon.com/wp-content/uploads/2011/11/NRF905-for-arduino.zip



- Changed Code Library

PROGMEM unsigned const int freq_tab[10] = {


- TX Source : https://github.com/rdiot/rdiot-s117/blob/master/nRF905_TX.ino

#include <NRF905.h>
#include <SPI.h>

#define BUF_LEN          32
#define CONF_LEN         10

#define NRF905_CSN       10

unsigned char tx_buf[BUF_LEN]= "RDIoT TX CNT:  \r\n";
unsigned char read_config_buf[CONF_LEN];

byte tx_address[4]= {0xcc,0xcc,0xcc,0xcc};

void setup()
{
    unsigned char i;

    pinMode(NRF905_CSN,OUTPUT); //to make sure SPI works

    nrf905=NRF905(NRF905_CSN);

    nrf905.init();


    /**
        default configuration, need to specify frequency
        choose Z-Wave frequency band, support :
        US  908.42Mhz
        EUROPE  868.42MHz
        AFRICA  868.42MHz
        CHINA  868.42MHz
        HK  919.82MHz
        JAPAN  853.42MHz
        AUSTRALIA 921.42MHz
        NEW_ZEALAND 921.42MHz
        BRASIL  921.42MHz
        RUSSIA  896MHz
    */
    nrf905.write_config(US);


    nrf905.read_config(read_config_buf);

    Serial.begin(9600);

    for(i=0; i<10; i++)
    {
        Serial.print(read_config_buf[i],HEX);
        Serial.print(' ');
    }

    tx_buf[12] = '0';
}

void loop()
{
    /** transmit data packet with default TX Address */
    nrf905.TX(tx_buf);

    /** transmit data packet with specified TX Address */
//    nrf905.TX(tx_buf, tx_address);

    // NOTE: TX_Address and RX_Address must be the same

    /** Count Sending times */
    tx_buf[12]++;
    if(tx_buf[12] == 0x3A){
      tx_buf[12] = '0';
    }
    delay(50);
}






- RX Source : https://github.com/rdiot/rdiot-s117/blob/master/nRF905_RX.ino

#include <Wire.h>
#include <LiquidCrystal_I2C.h>

#include <NRF905.h>
#include <SPI.h>
#define BUF_LEN          32
#define CONF_LEN         10

//NRF905 nrf905;

unsigned char rx_buf[BUF_LEN]= {0};
unsigned char read_config_buf[CONF_LEN];
unsigned char rx_address[4]= {0xcc,0xcc,0xcc,0xcc};
String str1="";

LiquidCrystal_I2C lcd(0x27,16,2);  // set the LCD address to 0x20 for a 16 chars and 2 line display

void putstring(unsigned char *str)
{

    while(*str){
        str1 += char(*str++);
        //Serial.write(*str++);

    }
}

void setup()
{
    char i;
    pinMode(10,OUTPUT);
    nrf905=NRF905(10);

    /** pin/port configuration */
    nrf905.init();


    /***************************************************
        default configuration, need to specify frequency
        choose Z-Wave frequency band, support :
        US  908.42Mhz
        EUROPE  868.42MHz
        AFRICA  868.42MHz
        CHINA  868.42MHz
        HK  919.82MHz
        JAPAN  853.42MHz
        AUSTRALIA 921.42MHz
        NEW_ZEALAND 921.42MHz
        BRASIL  921.42MHz
        RUSSIA  896MHz
    */
 nrf905.write_config(US);

    /***********************************************************
 read register configuration, check register value written */
    nrf905.read_config(read_config_buf);

    /** serial communication configurate */
    Serial.begin(9600);

    /** test configuration */
    for(i=0; i<CONF_LEN; i++){
        Serial.print(read_config_buf[i],HEX);
        Serial.print(' ');
    }

  lcd.init();  // initialize the lcd
  lcd.backlight();
  lcd.print("start LCD2004");

  delay(1000);

  lcd.clear();

}

void loop()
{

    lcd.setCursor(0,0);
    lcd.print("S117:nRF905 RCV");

    /** recieve data packet with default RX address */
    nrf905.RX(rx_buf);

    /** recieve data packet with specified RX address */
    //    nrf905.RX(rx_buf, rx_address );

    // NOTE: TX_Address and RX_Address must be the same

    /** send recieved data to PC through serial port */
    putstring(rx_buf);

    lcd.setCursor(0,1);
    lcd.print(str1);
    str1 = "";

    delay(1);
}




'2) Sensor > Z-Wave' 카테고리의 다른 글

nRF905 Wireless Module 433,868,915Mhz (NRF905) [S117]  (0) 2018.01.10
Posted by RD IoT RDIoT

댓글을 달아 주세요

MQTT + Kafka + Raspberry Pi ElasticSearch Cluster [P016]






https://www.youtube.com/watch?v=coKGRMDqAJk


* GitHub : https://github.com/rdiot/rdiot-p016


* Parts

- Arduino UNO

Ethernet W5100 Shield (W5100) [B004]

LCD1602 I2C (LCD1602) [D016]

Photo Resistor Module (KY-018) [S002]

Temperature and humidity DHT22 (DHT22) [S063]

TPM-300 Air Quality Module (TPM-300) [S092]

Samsung ARTIK 5 (ARTIK5-V0.5) [B023]

Raspberry Pi 3 B Model (RASPBERRY-PI-3-B) [B088] x 3ea : for Kafka Cluster

Raspberry Pi 3 B Model (RASPBERRY-PI-3-B) [B088] x 4ea : for ElasicSearch Cluster

- USB Power Supply

- Ethernet Hub


* Contents

1. Raspberry Pi ElasticSearch Cluster Setup

- version : elasticsearch 2.4.6

- master config
 :
https://github.com/rdiot/rdiot-p016/blob/master/elasticsearch_es-pi-master-01.yml

- data node config

 : https://github.com/rdiot/rdiot-p016/blob/master/elasticsearch_es-pi-data-01.yml

 : https://github.com/rdiot/rdiot-p016/blob/master/elasticsearch_es-pi-data-02.yml

 : https://github.com/rdiot/rdiot-p016/blob/master/elasticsearch_es-pi-data-03.yml




2. logstash configuration

https://github.com/rdiot/rdiot-p016/blob/master/logstash-kafka-elasticsearch-airGrade.conf

- https://github.com/rdiot/rdiot-p016/blob/master/logstash-kafka-elasticsearch-cds.conf

- https://github.com/rdiot/rdiot-p016/blob/master/logstash-kafka-elasticsearch-humidity.conf

- https://github.com/rdiot/rdiot-p016/blob/master/logstash-kafka-elasticsearch-temperature.conf


3. start logstash script example

#!/bin/sh

export LS_HEAP_SIZE="500m"

/data1/logstash/logstash/bin/logstash -f /data1/logstash/logstash-kafka-elasticsearch-temperature.conf -l logstash.log &


4. Kafka logstash Monitoring


5. ElasticSearch data node shard


6. Grafana Setup

- Install in Raspberry Pi

$ sudo apt-get install libfontconfig

$ curl -L https://github.com/fg2it/grafana-on-raspberry/releases/download/v4.0.1/grafana_4.0.1-1480722482_armhf.deb -o /tmp/grafana_4.0.1-1480722482_armhf.deb

$ sudo dpkg -i /tmp/grafana_4.0.1-1480722482_armhf.deb


$ sudo vi /etc/grafana/grafana.ini

# The ip address to bind to, empty will bind to all interfaces

http_addr = 192.168.0.20


$ sudo systemctl enable grafana-server

$ sudo systemctl restart grafana-server


- Connect Grafana WebAdmin

http://92.168.0.20:3000

id/pwd : admin/admin


- Add Data Sources : http://192.168.0.20:3000/datasources/new


- edit data source examples


7. Grafana Dashboard

- Kafka-Sensor-Monitoring

 : Temperature, Humidity, Cds, AirGrade


Posted by RD IoT RDIoT

댓글을 달아 주세요

MQTT + Kafka + Amazon ElasticSearch Service [P015]








https://www.youtube.com/watch?v=-8B8Yp52XMY


* GitHubhttps://github.com/rdiot/rdiot-p015


* Parts

- Arduino UNO

Ethernet W5100 Shield (W5100) [B004]

LCD1602 I2C (LCD1602) [D016]

Photo Resistor Module (KY-018) [S002]

Temperature and humidity DHT22 (DHT22) [S063]

TPM-300 Air Quality Module (TPM-300) [S092]

Samsung ARTIK 5 (ARTIK5-V0.5) [B023]

Raspberry Pi 3 B Model (RASPBERRY-PI-3-B) [B088] x 3ea : for Kafka Cluster

- USB Power Supply

- Ethernet Hub



* Contents

1. Amazon ElasticSearch Service Setup

 - Define domain

- Configure cluster


- Set up access

- Review


Amazon Elasticsearch Service dashboard


2. ES Information example

- ElasticSearch Endpoint : https://search-rdiot-aws-es-2yolnmmxbjghreiywdbh4yrsay.ap-northeast-2.es.amazonaws.com

- Kibana URL : https://search-rdiot-aws-es-2yolnmmxbjghreiywdbh4yrsay.ap-northeast-2.es.amazonaws.com/_plugin/kibana/



3. MQTT - Kafka - Bridge (json)

- source : https://github.com/rdiot/rdiot-p015/blob/master/MqttToKafkaReConn.java

- result

{"time": 1511884443315,"value":724}

{"time": 1511884444405,"value":724}

{"time": 1511884445488,"value":723}

{"time": 1511884446579,"value":724}

{"time": 1511884447657,"value":726}


4. install logstash : tested logstash-2.4.1

$ cd /data1/logstash

$ wget https://download.elastic.co/logstash/logstash/logstash-2.4.1.tar.gz

$ tar zxvf logstash-2.4.1.tar.gz

$ ln -s logstash-2.4.1 logstash


$ sudo apt-get install ant texinfo openjdk-8-jdk build-essential

$ git clone https://github.com/jnr/jffi.git

$ export JAVA_HOME="/usr/lib/jvm/java-8-openjdk-armhf"

$ cd jffi

$ ant jar

$ sudo cp build/jni/libjffi-1.2.so /data1/logstash/logstash/vendor/jruby/lib/jni/arm-Linux


5. logstash config : tested logstash-2.4.1

- source : https://github.com/rdiot/rdiot-p015/blob/master/logstash-kafka-aws-es.conf

input {

   kafka {

   zk_connect => "kafka-pi-01:2181"

   group_id => "logstash"

   topic_id => "cds"

   consumer_threads => 2

   decorate_events => true



  }

}


filter {

  json {

    source => "message"

  }

  date {

    match => [ "time", "UNIX"]

    target => "time_new"


  }

}


output {

  elasticsearch {

    index => "test-%{+YYYY.MM.dd}"

    hosts => ["https://search-rdiot-aws-es-2yolnmmxbjghreiywdbh4yrsay.ap-northeast-2.es.amazonaws.com"]

    codec => json

  }

  stdout {

    codec => "rubydebug"

  }

}


6. Amazon ElasticSearch Query Sample



7. Kibana : Search & Chart






Posted by RD IoT RDIoT

댓글을 달아 주세요

ARTIK MQTT + Raspberry Pi Apache Kafka Cluster Bridge [P014]



* Arduino MQTT Client to ARTIK MQTT Broker


* ARTIK MQTT Broker & Raspberry Pi Kafka Cluster


* Run MQTT-Kafka-Bridge


* Kafka Console Consumer


* KafkaMonitor



https://www.youtube.com/watch?v=JIEIv-pEFFs


*GitHub : https://github.com/rdiot/rdiot-p014.git


* Parts

- Arduino UNO

Ethernet W5100 Shield (W5100) [B004]

LCD1602 I2C (LCD1602) [D016]

Photo Resistor Module (KY-018) [S002]

Temperature and humidity DHT22 (DHT22) [S063]

TPM-300 Air Quality Module (TPM-300) [S092]

Samsung ARTIK 5 (ARTIK5-V0.5) [B023]

Raspberry Pi 3 B Model (RASPBERRY-PI-3-B) [B088] x 3ea

- USB Power Supply

- Ethernet Hub



* Contents

1.  ARTIK MQTT Start

- mqtt broker (1883)

$ mosquitto &


2. Add MQTT Topics in the node-red

- node-red (1880)

$ node-red &


3. Arduino MQTT Client

- source

https://github.com/rdiot/rdiot-p014/blob/master/arduino_mqtt_client.ino



4. MQTT Kakfa Bridge
- source

https://github.com/rdiot/rdiot-p014/blob/master/MqttToKafkaReConn.java

- maven

    <!--  mqtt-client -->

<dependency>

    <groupId>org.fusesource.mqtt-client</groupId>

    <artifactId>mqtt-client</artifactId>

    <version>1.14</version>

</dependency>

<!-- kafka -->

<dependency>

<groupId>org.apache.kafka</groupId>

<artifactId>kafka_2.9.1</artifactId>

<version>0.8.2.1</version>

</dependency>


- run script

https://github.com/rdiot/rdiot-p014/blob/master/mqtt-kafka-bridge.sh

$ java -jar mqtt-kafka-bridge-0.0.1-SNAPSHOT.jar

$ nohup java -jar mqtt-kafka-bridge-0.0.1-SNAPSHOT.jar > output.txt &


5. Kafka Console Consumer

- run script

https://github.com/rdiot/rdiot-p014/blob/master/consumer.sh

$ /data1/kafka/kafka/bin/kafka-console-consumer.sh --zookeeper kafka-pi-01:2181,kafka-pi-02:2181,kafka-pi-03:2181 --topic $1


- run command

$ ./consumer.sh temperature,humidity,cds,airGrade

$ ./consumer.sh temperature


Posted by RD IoT RDIoT

댓글을 달아 주세요

Crash Collision Sensor Detection Module [S230]





https://www.youtube.com/watch?v=1yeZcZQk-Y8


*GitHubhttps://github.com/rdiot/rdiot-s230.git


* Specs

Wrobot Crash Sensor is arduino compatible and can be used for for robot collision detection, touch collision detection.

It is based on the high sensitivity crash sensor.

With the Arduino sensor expansion board, in combination, it can be very easy to achieve robot collision detection, touch collision detection.


When touch, output low level ; when release, maintain a high level

Wrobot Crash Sensor pin definitions : (1) Output (2) Vcc (3) GND

Features :

1.Based on the high sensitivity crash sensor

2.Can be used for robot collision detection, touch collision detection

3.Type : Digital

4.Sensitivity : High

5.Power Supply : 5V

6.Pin Definitions : (1) Output (2) Vcc (3) GND

7.When touch, output low level ; when release, maintain a high level

8.Apply to a variety of platforms including Arduino/51/AVR/ARM


* Contents

- connect

OUT - D3

VCC - 5V

GND - GND



- Key Code

int ledPin = 13;                // choose the pin for the LED
int inputPin = 3;               // connect sensor to input pin 3


void setup() {
  Serial.begin(9600);           // Init the serial port

  pinMode(ledPin, OUTPUT);      // declare LED as output
  pinMode(inputPin, INPUT);     // declare Micro switch as input
}

void loop(){
  int val = digitalRead(inputPin);  // read input value
  if (val == HIGH) {                // check if the input is HIGH
    digitalWrite(ledPin, LOW);      // turn LED OFF
  } else {
    digitalWrite(ledPin, HIGH);     // turn LED ON
    Serial.println("Switch Pressed!");
  }
  delay(50);
}


Posted by RD IoT RDIoT
